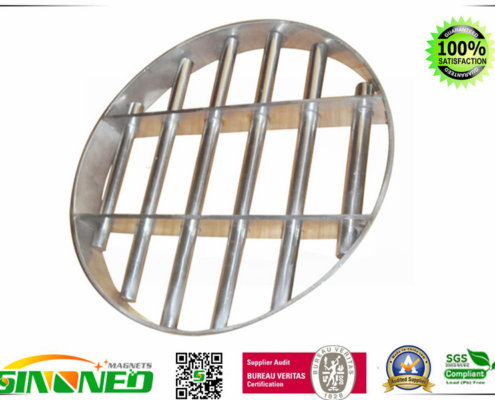

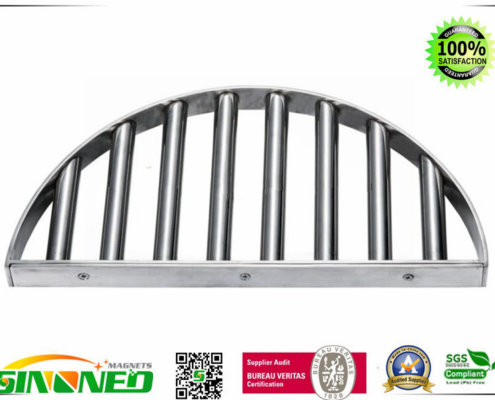

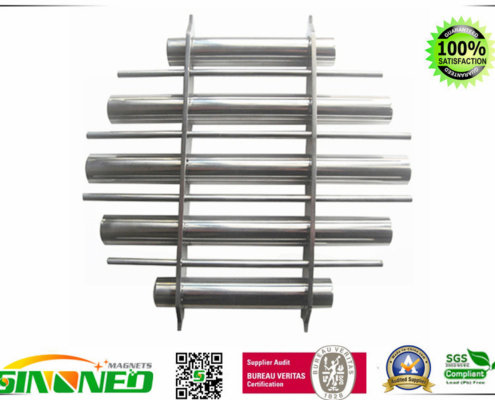

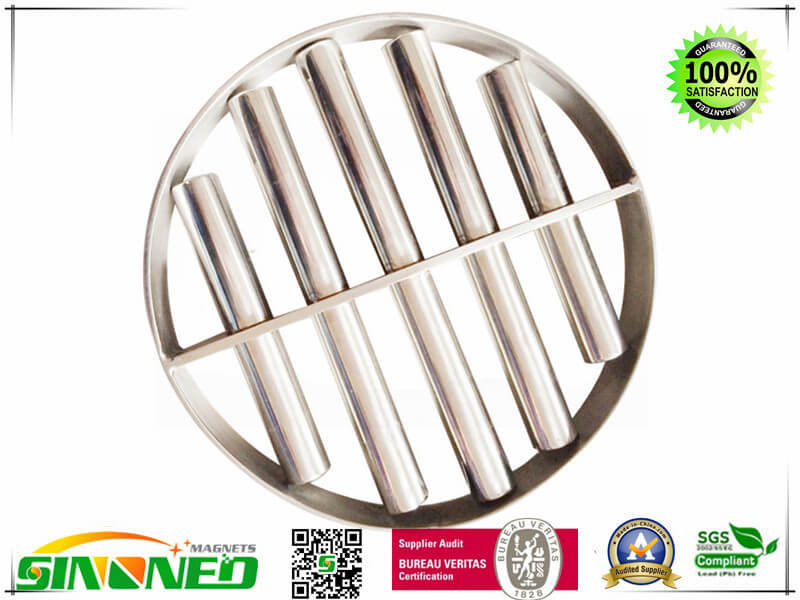

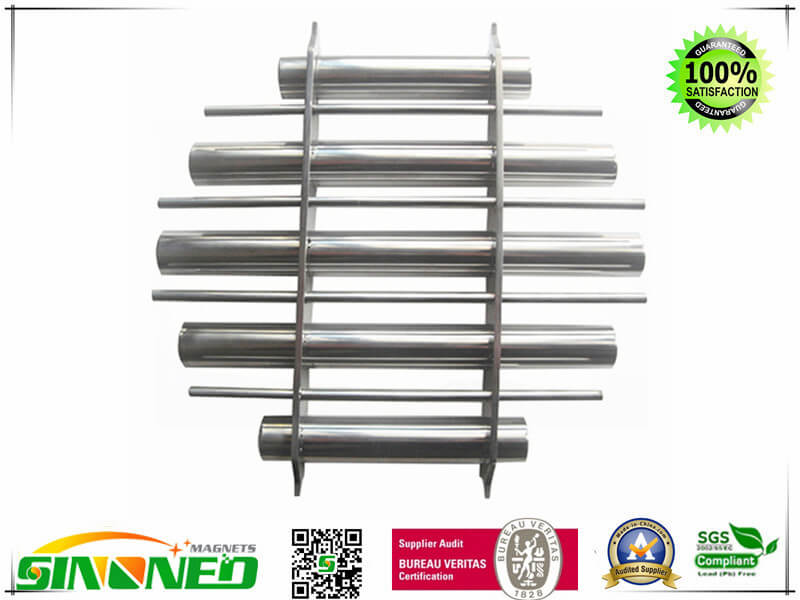

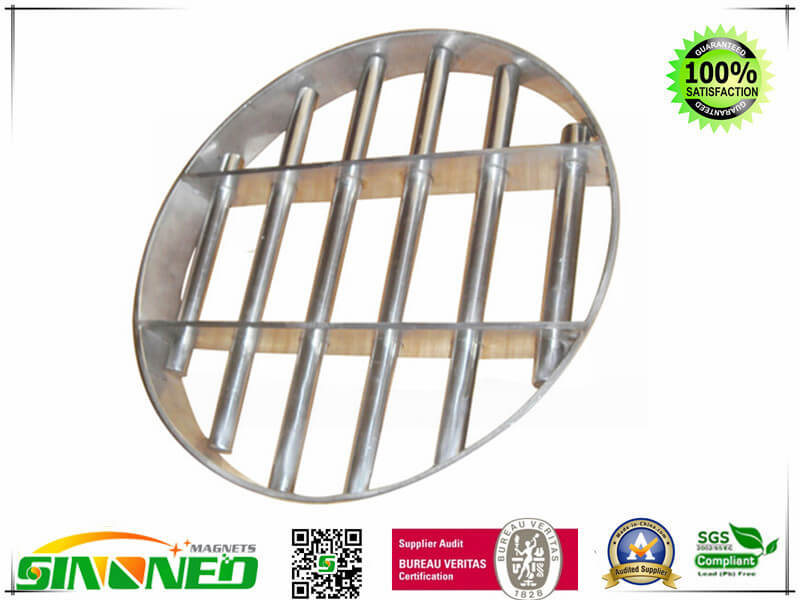

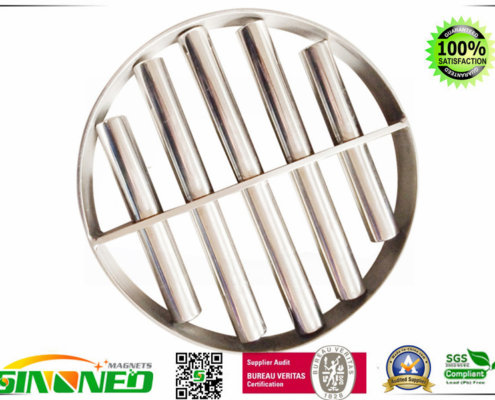

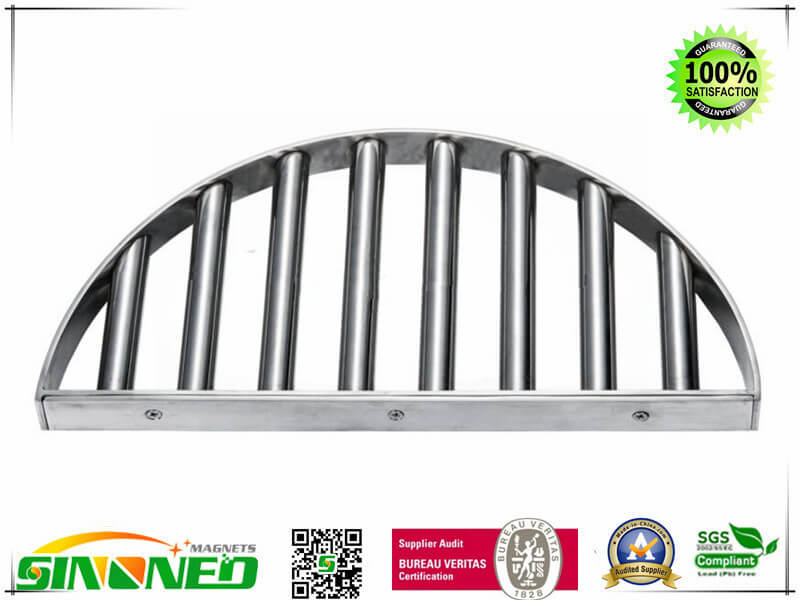

ROUND STAINLESS STEEL MAGNETIC GRILLS
Magnetic Grills And Grates Filters, Neodymium Magnetic Grills, Magnetic Grills Separator
| Material: | SUS304/316/316L+NdFeB Magnets/SmCo Magnets |
| Shape: | Round, rectangle, single-level, double-level, etc. |
| Application: | Hopper, Industrial filter, food industry, Ceramic industry ect. |
| Dimension: | 100mm-2000mm, or customized as your request |
| Working Temp. | 80ºC~350ºC |
| Various End: | Sealed, drilled or tapped holes, or with bolt, or as your request. |
| Magnet Strength: | 8000-14000Gs |
| Package: | Standard Export Cartons |
| Shipping: | By sea, By air or By express delivery (DHL/UPS/FEDEX) |
| Features: | Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion |
Are you looking for magnetic grills, round magnetic grills manufacturer & supplier?
We have a wide selection at great prices to help you get creative. All the magnetic grills are quality guaranteed. Sinoneo Magnets supply high quality of Food Grade Stainless Steel magnetic grills within the time stipulated. If you have any questions, please feel free to contact us now.
Sinoneo magnetic grills are made up of stainless steel which provides a high-intensity, a high-gradient magnetic field to remove ferrous metals from free-flowing materials. It is available in square, round, and rectangular as per client requirements.
Our magnetic grills are used in or below hoppers, catch bins, floor opening’s, and many other locations to protect processing equipment and ensure product purity. It is used for a high level of protection.
Magnetic grills are designed for product purity of free-flowing materials such as carbon black, drugs, chemicals, cosmetics, plastics, food industries, and so on. These units are easily installed in any hopper or floor opening, chute or duct.
Magnetic Grills optional features:
1. The shell material: SS304, SS316,SS316L;
2. The magnetic strength grade: 2000Gs, 3000Gs, 6000Gs, 8000Gs,10000Gs, 12000Gs;
3. Working temperature grade <: 80, 100, 120, 150, 180, 200, 250, 300 degree Celsius;
4. Various designs available: easy clean type, one layer, multilayer;
5. Sizes and Shape: any sizes and any shapes, such as square, rectangle, round, oval, triangle, rhombus or irregular polygon;
6. It also takes customers' designs.
Field of applications for the magnetic grills filter :
Pharmaceutical industry
Chemical industry
Food industry
Plastic industry
Recycling industry
Textile industry
Water treatment
Other liquid(hydro-material) separation applications.
Maximum Operation Temperature of magnetic grills:
6 series is available for the customer to choose from
N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C
Magnet Strength of Magnetic grills and grates:
Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:
| 0.25T | 0.5T | 0.7T | 0.9T | 1T | 1.1T | 1.2T | |
| Φ 19 (0.75″ ) | √ EH | √ EH | √ EH | √ H | √ M | – | – |
| Φ 22 (0.85″ ) | √ EH | √ EH | √ EH | √ H | √ M | √ N | – |
| Φ 25 (1.00″ ) | √ EH | √ EH | √ EH | √ SH | √ H | √ M | √ N |
| Φ 32 (1.25″ ) | √ EH | √ EH | √ EH | √ SH | √ H | √ M | √ N |
| Φ 38 (1.50″ ) | √ EH | √ EH | √ EH | √ UH | √ SH | √ H | √ M |
| Φ 50 (1.75″ ) | √ EH | √ EH | √ EH | √ UH | √ SH | √ H | √ M |
| Φ 76 (3.00″ ) | √ EH | √ EH | √ EH | √ UH | √ UH | √ SH | √ H |
| Φ 100(4.00″ ) | √ EH | √ EH | √ EH | √ UH | √ UH | √ SH | √ H |
Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.
(2). The related Max working temperature from different series.
H series: <=120
SH series: <=150
UH series: <=180
EH series: <=250
(3).Round and square are both available
(4). 304 and 316L stainless steel type are available
(5). Magnetic bar length can be custom made. Max's length is 2500mm when the diameter is 25mm.
(6). Various end designs are available, such as Nailhead, thread hole, double screw bolt, etc.
[/av_textblock]
[av_one_half first min_height='' vertical_alignment='' space='' custom_margin='' margin='0px' row_boxshadow='' row_boxshadow_color='' row_boxshadow_width='10' link='' linktarget='' link_hover='' title_attr='' alt_attr='' padding='0px' highlight='' highlight_size='' border='' border_color='' radius='0px' column_boxshadow='' column_boxshadow_color='' column_boxshadow_width='10' background='bg_color' background_color='' background_gradient_color1='' background_gradient_color2='' background_gradient_direction='vertical' src='' background_position='top left' background_repeat='no-repeat' animation='' mobile_breaking='' mobile_display='' av_uid='av-1qoogi5']
[av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-kba89shi' id='' custom_class='' admin_preview_bg='']
The Specification of Magnetic Grills:
Round shape
| Specification | Size(mm) | No. of rods | |
| D | H | ||
| MG100 | 100 | 40 | 2 |
| MG150 | 150 | 40 | 3 |
| MG200 | 200 | 40 | 4 |
| MG250 | 250 | 40 | 5 |
| MG300 | 300 | 40 | 6 |
| MG350 | 350 | 40 | 7 |
| MG400 | 400 | 40 | 8 |
| MG450 | 450 | 40 | 9 |
| MG500 | 500 | 40 | 10 |
Other shapes and sizes of magnetic grills can be made as your request.
[/av_one_half]
Square shape
| Specification | Size (mm) | No. of rods | ||
| L | W | H | ||
| MG 10/10 | 100 | 100 | 40 | 2 |
| MG 15/15 | 150 | 150 | 40 | 3 |
| MG 20/20 | 200 | 200 | 40 | 4 |
| MG 25/25 | 250 | 250 | 40 | 5 |
| MG 30/30 | 300 | 300 | 40 | 6 |
| MG 35/35 | 350 | 350 | 40 | 7 |
| MG 40/40 | 400 | 400 | 40 | 8 |
| MG 45/45 | 450 | 450 | 40 | 9 |
| MG 50/50 | 500 | 500 | 40 | 10 |
| MG 30/20 | 300 | 200 | 40 | 4 |
| MG 40/20 | 400 | 200 | 40 | 4 |
| MG 40/30 | 400 | 300 | 40 | 6 |
| MG 50/20 | 500 | 200 | 40 | 4 |
| MG 50/30 | 500 | 300 | 40 | 6 |
| MG 50/40 | 500 | 400 | 40 | 8 |
Our advantage:
1, With more than 10 years experience of magnets area
2, Experienced Staff
3, Sophisticated equipment
4, Competitive price: People have asked us how we can offer such high quality at such good prices and the answer is simple: we
design and build our own products and can pass those savings on to you. There is no middleman.
5, OEM are welcomed, samples are available, small orders accepted
6,100% Quality & Best Service Guarantee: Competitive pricing doesn’t mean we skimp on service. Our fully staffed office of experienced professionals strives to return your quote on the same business day.
7, Quick delivery time: It is about 7~15 days.
8, Payment: We can accept T/T, Western Union, Paypal
Let Sinoneo Magnets help you in filtering out those unwanted ferrous materials!
Magnetic grills and grates filter have tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.
We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of magnetic grids and grates filter.
Our magnetic grills and grates are enclosed within a stainless steel coating. Our products are resistant to corrosion and hence have a long duration. In simple words, with an onetime investment, you can enjoy benefits for a longer time.
Our clientele profile includes some of the leading businesspersons from medicines, sanitation, machinery, and textile and food industry. We provide quality products at the most competitive price. Our product price ranges from $7-$400.
Go through our product list and place your order for the magnetic grids and grates. We provide fast shipping and you can expect the product within 12-15 business days. We are very particular about client satisfaction and look after the requirements. Free quotes will be provided upon request.
For any queries or else for placing your orders feel free to contact us now.
In order to quote you the best price quickly, please provide the following information:
1. Product size, material, etc
2. Order quantity;
3. Attached the drawings if customized
4. Any special packing or other requirements
Our advantages: High quality, best service, fast delivery.
We offer OEM service.
Quality First, Customer Forever
