PERMANENT MAGNETIC FILTER BARS
Magnetic Bar Filters, Neodymium Magnetic Filter Bars, Magnetic Bar Separators

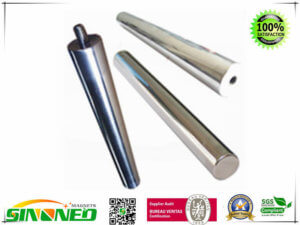

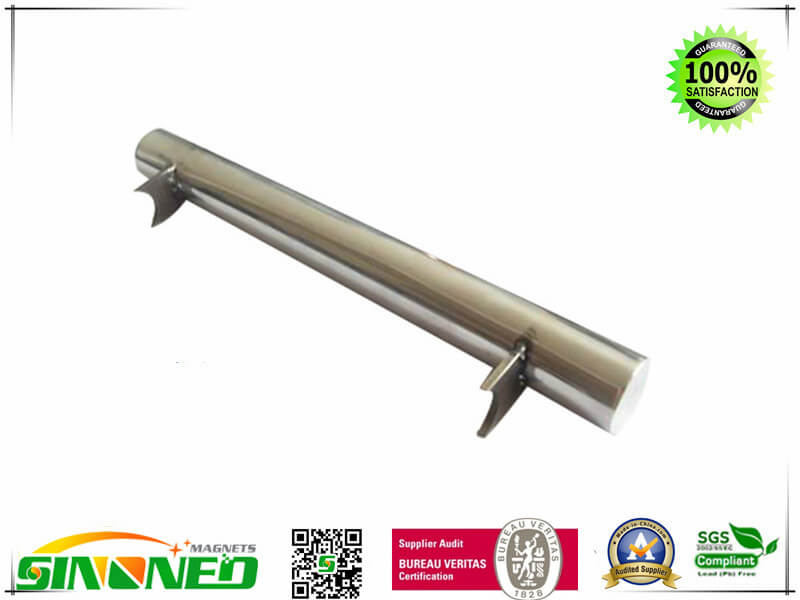

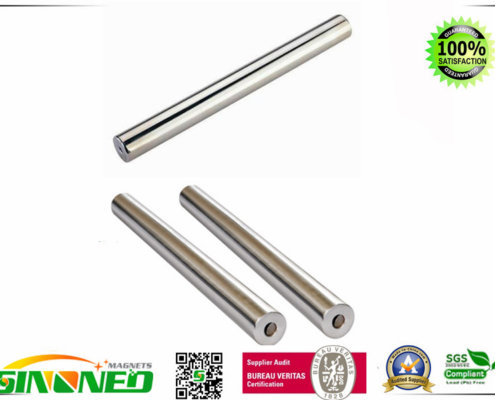

| Material: | SUS304/316/316L+NdFeB Magnets/SmCo Magnets |
| Shape: | Round or Square Shape. |
| Diameter: | D10 D16 D19 D22 D25 D32 ……Up to 100mm(3.9″) |
| Length: | 90mm-2000mm, or customized as your request |
| Working Temp. | 80ºC~350ºC |
| Various End: | Sealed, drilled or tapped holes, or with bolt, or as your request. |
| Magnet Strength: | 8000-14000Gs |
| Package: | Plastic Tube+Standard Export Cartons |
| Shipping: | By sea, By air or By express delivery (DHL/UPS/FEDEX) |
| Features: | Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion |
Sinoneo Magnet is a professional manufacturer and exporter of Permanent Magnetic Filter bars, magnetic filter bars, High-Performance Magnetic Bar Magnets in china. We supply high quality of Food Industry Grade Permanent Magnetic Filter Bar within the time stipulated.
Are you looking for a custom magnetic bar, Permanent magnetic filter bars manufacturer & supplier?
Sinoneo Permanent Magnetic filter bars offer greater protection in their facilities, they are composed of a permanent magnet made of stainless steel, and the cleaning must be manual.
Magnetic bar Separator provides an effective means of removing ferrous chips and metal particles from loosely packed, free-flowing materials. They are usually constructed of 304 stainless steel tubes or 316 stainless steel tubes for special domains filled with Ceramic or Rare Earth Magnet. Either round or square shape bars are available for customers’ desiring for special applications.
Application of permanent magnetic filter bars:
Permanent magnetic filters bars may apply in medicines, sanitation, textile, machinery, and foodstuffs. The filer will attract iron/steel substances away from liquids, from among grains or powders.
Working Temperature:
6 series is available for the customer to choose from
N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

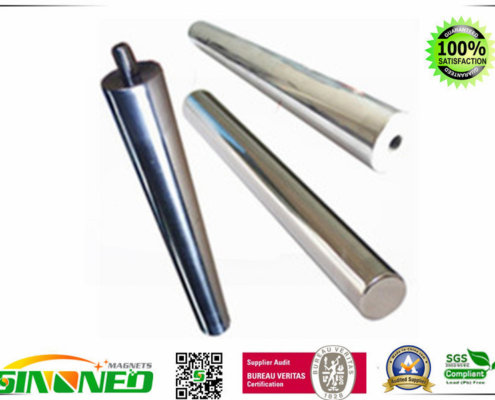

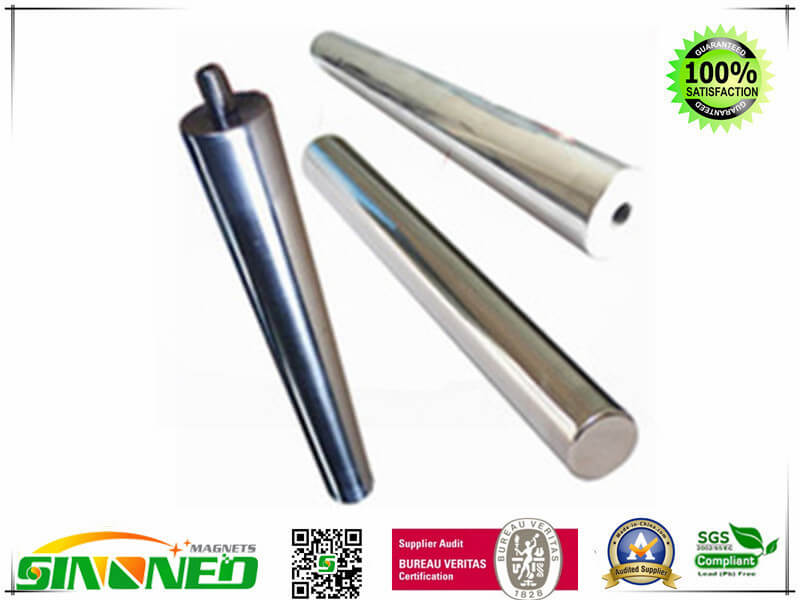

Threaded Hole of Permanent Magnetic Filter Bars:
1, Tapped threaded holes at each end for easy installation.
2, Tapped one threaded hole at one end, and the other end is plain welded.
3, Both of ends are plain welded.
Magnet Strength of permanent magnetic filter bars:
Per customers’ requirements. The highest is up to 14, 000GS (1.4T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:
| 0.25T | 0.5T | 0.7T | 0.9T | 1T | 1.2T | 1.4T | |
| Φ 19 (0.75″ ) | √ EH | √ EH | √ EH | √ H | √ M | – | – |
| Φ 22 (0.85″ ) | √ EH | √ EH | √ EH | √ H | √ M | √ N | – |
| Φ 25 (1.00″ ) | √ EH | √ EH | √ EH | √ SH | √ H | √ M | √ N |
| Φ 32 (1.25″ ) | √ EH | √ EH | √ EH | √ SH | √ H | √ M | √ N |
| Φ 38 (1.50″ ) | √ EH | √ EH | √ EH | √ UH | √ SH | √ H | √ M |
| Φ 50 (1.75″ ) | √ EH | √ EH | √ EH | √ UH | √ SH | √ H | √ M |
| Φ 76 (3.00″ ) | √ EH | √ EH | √ EH | √ UH | √ UH | √ SH | √ H |
| Φ 100(4.00″ ) | √ EH | √ EH | √ EH | √ UH | √ UH | √ SH | √ H |
Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.
(2). The related Max working temperature from different series.
H series: <=120
SH series: <=150
UH series: <=180
EH series: <=250
(3).Round and square are both available
(4). 304 and 316L stainless steel type are available
(5). Magnetic bar length can be custom made. Max’s length is 2500mm when the diameter is 25mm.

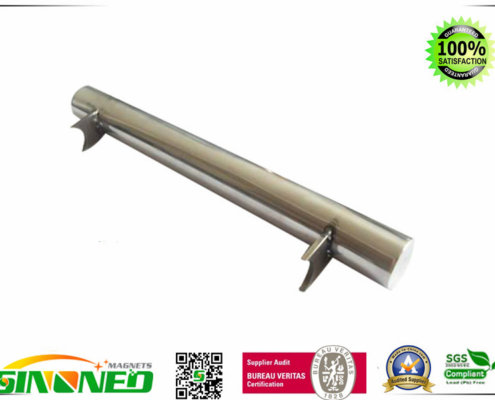

(6). Various end designs are available, such as Nailhead, thread hole, double screw bolt, etc.

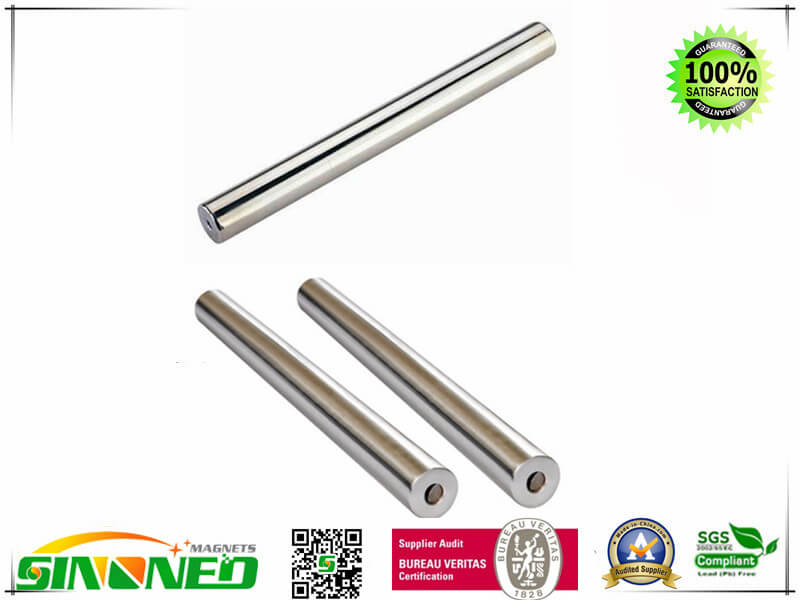

The size of permanent magnetic filter bars
|
Custom permanent magnetic filter bars
|
|||
|
ITEM No.
|
Diameter/Square
（mm）
|
Length（mm）
|
Surface Flux
|
|
（NdFeB）
|
|||
|
SMMF-C0001
|
10
|
100-500
|
8000-12000GAUSS
|
|
SMMF-C0002
|
16
|
100-2500
|
8000-12000GAUSS
|
|
SMMF-C0003
|
19
|
100-2500
|
8000-12000GAUSS
|
|
SMMF-C0004
|
22
|
100-2500
|
8000-12000GAUSS
|
|
SMMF-C0005
|
25
|
100-2500
|
8000-12000GAUSS
|
|
SMMF-C0006
|
25.4
|
100-2500
|
8000-12000GAUSS
|
|
SMMF-C0007
|
32
|
100-2500
|
8000-12000GAUSS
|
|
SMMF-C0008
|
50.8
|
100-2500
|
8000-12000GAUSS
|
The standard diameter we supply is D10, D19, D22, D25, D25.4, D32, D50.8 and etc. The size can be varied at your request.
The permanent magnetic filter bars are usually made of seamed or seamless 304 stainless steel tubes or 316 stainless steel tubes. The tubes can be fine polished and fully welded to meet food grade or pharmacy application.
The standard working temperature is 80℃, but we can offer up to 350℃ to meet your special applications.
By using different grades of rare earth magnets, different magnetic forces are available to meet every customer’s requirement, the highest magnetic force of diameter 25mm magnetic bar can achieve 14,000GS(1.4T).
