MAGNETIC GRATE WITH 90°C ANGULAR BAFFLES
Magnetic Grate And Grid Filters, Neodymium Magnetic Grate, Magnetic Grate Separators
| Material: | SUS304/316/316L+NdFeB Magnets/SmCo Magnets |
| Shape: | Round, rectangle, single-level, double-level, etc. |
| Application: | Hopper, Industrial filter, food industry, Ceramic industry ect. |
| Dimension: | 100mm-2000mm, or customized as your request |
| Working Temp. | 80ºC~350ºC |
| Various End: | Sealed, drilled or tapped holes, or with bolt, or as your request. |
| Magnet Strength: | 8000-14000Gs |
| Package: | Standard Export Cartons |
| Shipping: | By sea, By air or By express delivery (DHL/UPS/FEDEX) |
| Features: | Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion |
Are you looking for the magnetic grate, magnetic grate with baffles manufacturer & supplier?
We have a wide selection at great prices to help you get creative. All the magnetic grate is quality guaranteed. Sinoneo Magnets supply high quality of Food Grade Stainless Steel magnetic grate within the time stipulated. If you have any questions, please feel free to contact us now.

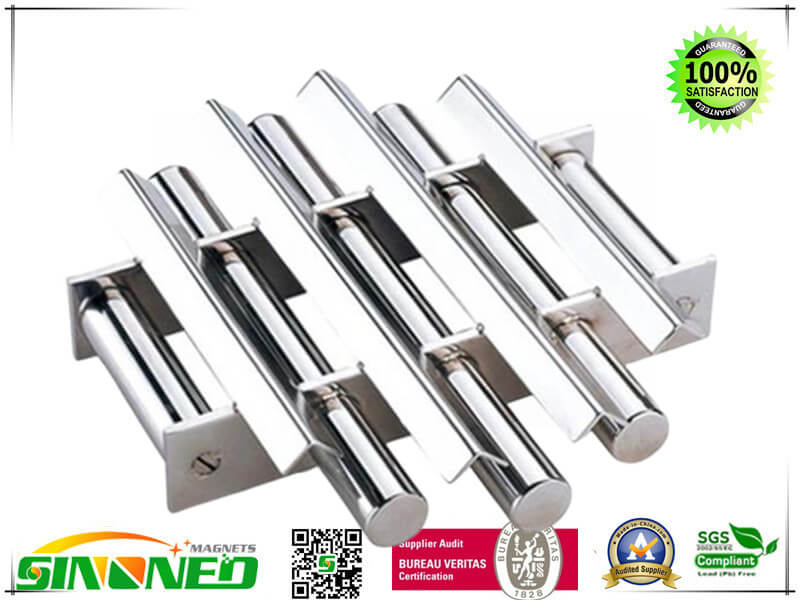

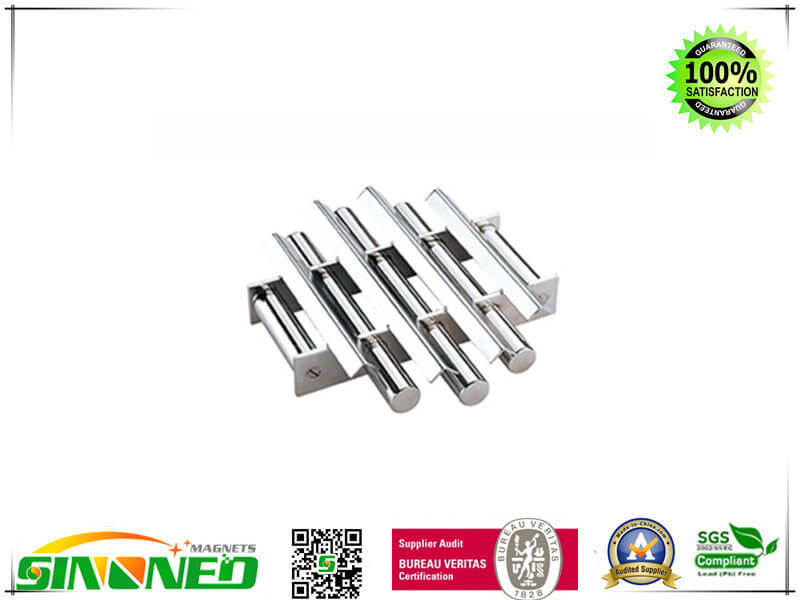

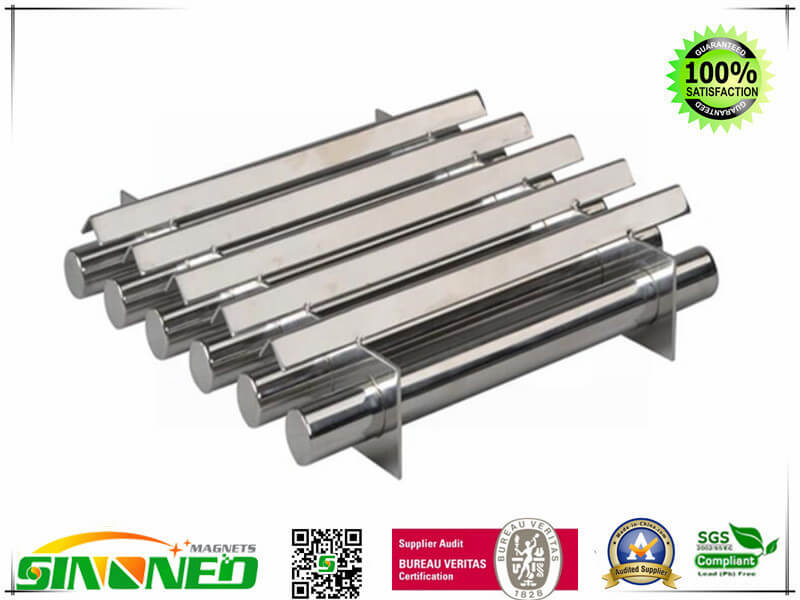

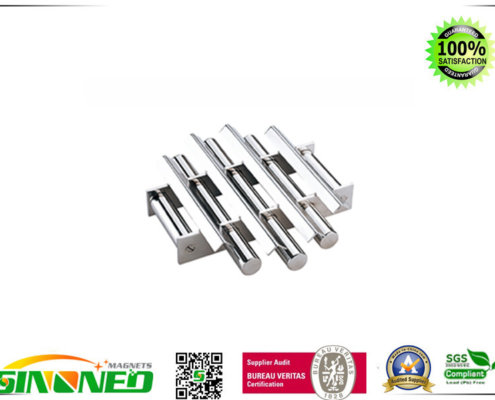

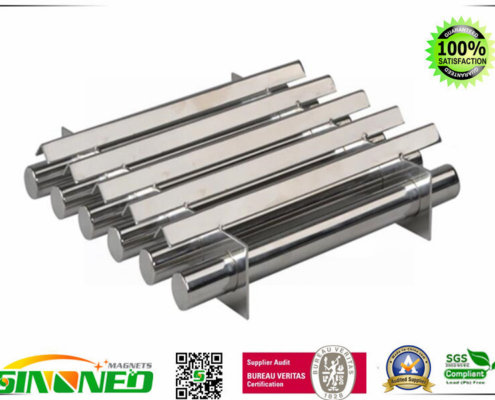

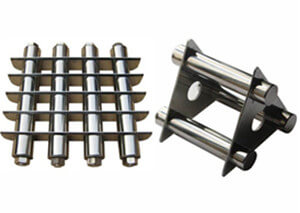

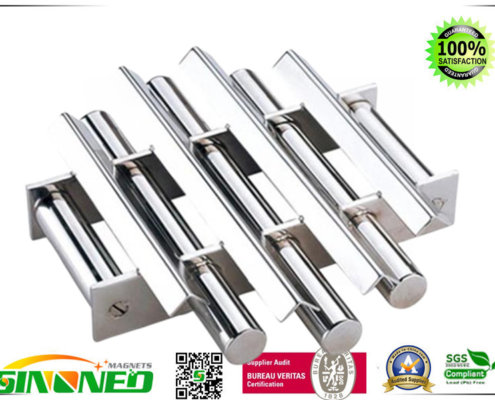

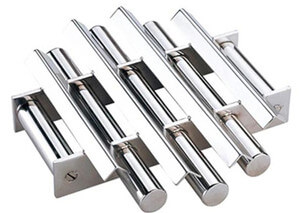

Sinoneo Magnetic Grate with 90°C angular baffles are constructed by a row of magnetic bars which are fixed by frames in various shape. It can be square, rectangle, round, oval, triangle, rhombus, or irregular polygon, to suit for different positions. Center distance of bars is usually 2 inches.
Magnetic Grate or Grate magnet provides economical magnetic protection against tramp iron in mechanical or gravity conveying and processing systems. They can remove ferrous fines, fragments, and larger metal objects from dry particulates, liquids, and slurries.
With this solution, your equipment and facilities will be protected, while your products will be safe for consumption.
Magnetic Grate optional features:
1. The shell material: SS304, SS316,SS316L;
2. The magnetic strength grade: 2000Gs, 3000Gs, 6000Gs, 8000Gs,10000Gs, 12000Gs;
3. Working temperature grade <: 80, 100, 120, 150, 180, 200, 250, 300 degree Celsius;

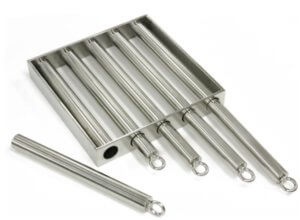

4. Various designs available: easy clean type, one layer, multilayer;
5. Sizes and Shape: any sizes and any shapes, such as square, rectangle, round, oval, triangle, rhombus or irregular polygon;
6. It also takes customers' designs.
Maximum Operation Temperature of magnetic grate:
6 series is available for the customer to choose from
N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C
Magnet Strength of Magnetic grate:
Per customers’ requirements. The highest is up to 12, 000GS (1.2T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:
| 0.25T | 0.5T | 0.7T | 0.9T | 1T | 1.1T | 1.2T | |
| Φ 19 (0.75″ ) | √ EH | √ EH | √ EH | √ H | √ M | – | – |
| Φ 22 (0.85″ ) | √ EH | √ EH | √ EH | √ H | √ M | √ N | – |
| Φ 25 (1.00″ ) | √ EH | √ EH | √ EH | √ SH | √ H | √ M | √ N |
| Φ 32 (1.25″ ) | √ EH | √ EH | √ EH | √ SH | √ H | √ M | √ N |
| Φ 38 (1.50″ ) | √ EH | √ EH | √ EH | √ UH | √ SH | √ H | √ M |
| Φ 50 (1.75″ ) | √ EH | √ EH | √ EH | √ UH | √ SH | √ H | √ M |
| Φ 76 (3.00″ ) | √ EH | √ EH | √ EH | √ UH | √ UH | √ SH | √ H |
| Φ 100(4.00″ ) | √ EH | √ EH | √ EH | √ UH | √ UH | √ SH | √ H |
Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.
(2). The related Max working temperature from different series.
H series: <=120
SH series: <=150
UH series: <=180
EH series: <=250
(3).Round and square are both available
(4). 304 and 316L stainless steel type are available
(5). Magnetic bar length can be custom made. Max's length is 2500mm when the diameter is 25mm.
(6). Various end designs are available, such as Nailhead, thread hole, double screw bolt, etc.
[/av_textblock]
[av_textblock size='' font_color='' color='' av-medium-font-size='' av-small-font-size='' av-mini-font-size='' av_uid='av-kba2phj2' id='' custom_class='' admin_preview_bg='']

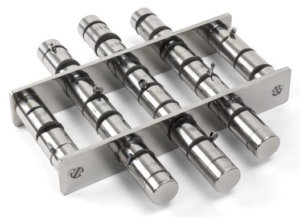

Magnetic grate and grid filters have tremendous demand for removing solid and liquid ferrous materials. And what can filter out iron much easier and precisely than a magnet? Whatever may be the purpose, the iron residues stick all over the magnet, and then removed by hands.
We are the leading manufacturer of magnets and magnetic products in China, have a wide collection of magnetic grids and grates filter.

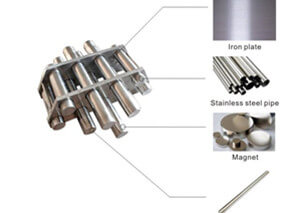

Our magnetic grate and grid are enclosed within a stainless steel coating. Our products are resistant to corrosion and hence have a long duration. In simple words, with an onetime investment, you can enjoy benefits for a longer time.
Our clientele profile includes some of the leading businesspersons from medicines, sanitation, machinery, and textile and food industry. We provide quality products at the most competitive price. Our product price ranges from $7-$400.
Go through our product list and place your order for the magnetic grids and grates. We provide fast shipping and you can expect the product within 12-15 business days. We are very particular about client satisfaction and look after the requirements. Free quotes will be provided upon request.
For any queries or else for placing your orders feel free to contact us now.
In order to quote you the best price quickly, please provide the following information:
1. Product size, material, etc
2. Order quantity;
3. Attached the drawings if customized
4. Any special packing or other requirements
Our advantages: High quality, best service, fast delivery.
We offer OEM service.
Quality First, Customer Forever
