Name: Magnetic Filter Rod Assembly for Oil Industrial with cheap price
Availability: InStock

MAGNETIC FILTER ROD ASSEMBLY FOR OIL INDUSTRIAL

Permanent Magnetic Rod Filters, Neodymium Magnetic filter rods, Oil Industrial Magnet Rod Separators

Material:	SUS304/316/316L+NdFeB Magnets/SmCo Magnets
Shape:	Round or Square Shape.
Diameter:	D10 D16 D19 D22 D25 D32 ……Up to 100mm(3.9″)
Length:	90mm-2000mm, or customized as your request
Working Temp.	80ºC~350ºC
Various End:	Sealed, drilled or tapped holes, or with bolt, or as your request.
Magnet Strength:	8000-14000Gs
Package:	Plastic Tube+Standard Export Cartons
Shipping:	By sea, By air or By express delivery (DHL/UPS/FEDEX)
Features:	Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion

Are you looking for magnetic filter rods for oil industrial with 12000 Gs manufacturer & supplier?

We have a wide selection at great prices to help you get creative. All the Magnetic Rod filters are quality guaranteed. Sinoneo Magnets supply high quality of Magnetic filter rod for oil industrial within the time stipulated. If you have any questions, please feel free to contact us now.

CONTACT US NOW.

Sinoneo magnetic rods, Magnetic filter rod offer greater protection in their facilities, they are composed of a permanent magnet made of stainless steel, and the cleaning must be manual.

Magnetic filter rod Separator provides an effective means of removing ferrous chips and metal particles from loosely packed, free-flowing materials. They are usually constructed of 304 or 316 stainless steel tubes for special domains filled with Ceramic or Rare Earth Magnet.

Application of magnetic filter rod:

Magnetic rods, the magnetic filter rod may apply in medicines, sanitation, textile, machinery, and foodstuffs. The filer will attract iron/steel substances away from liquids, from among grains or powders.

Working Temperature:

6 series is available for the customer to choose from

N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

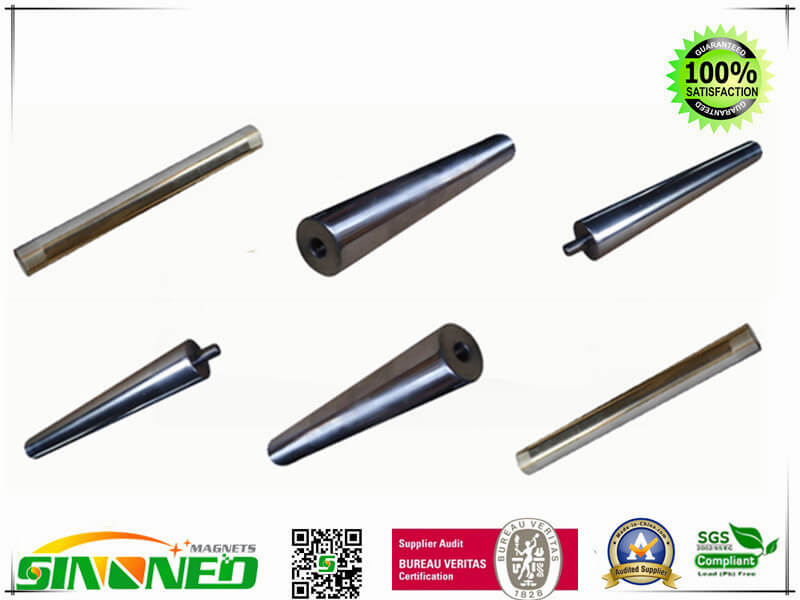

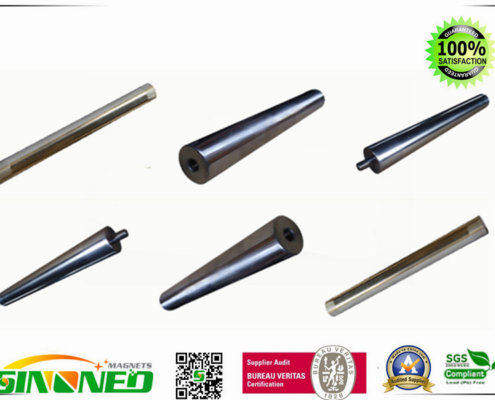

Threaded Hole of Magnetic Filter Rod:

endplugs of magnetic tubes

1, Tapped threaded holes at each end for easy installation.

2, Tapped one threaded hole at one end, and the other end is plain welded.

3, Both of ends are plain welded.

Magnet Strength of magnetic filter rod:

Per customers’ requirements. The highest is up to 14, 000GS (1.4T).
Following is the relationship between diameter, magnetic strength, and Maximum Operation Temperature for reference:

	0.25T	0.5T	0.7T	0.9T	1T	1.2T	1.4T
Φ 19 (0.75″ )	√ EH	√ EH	√ EH	√ H	√ M	–	–
Φ 22 (0.85″ )	√ EH	√ EH	√ EH	√ H	√ M	√ N	–
Φ 25 (1.00″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 32 (1.25″ )	√ EH	√ EH	√ EH	√ SH	√ H	√ M	√ N
Φ 38 (1.50″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 50 (1.75″ )	√ EH	√ EH	√ EH	√ UH	√ SH	√ H	√ M
Φ 76 (3.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H
Φ 100(4.00″ )	√ EH	√ EH	√ EH	√ UH	√ UH	√ SH	√ H

Remarks:
(1).”√”means it can be manufactured on the condition of the diameters listed in the table.”- “means can not be manufactured.

(2). The related Max working temperature from different series.
H series: <=120 SH series: <=150 UH series: <=180 EH series: <=250 (3).Round and square are both available (4). 304 and 316L stainless steel type are available (5). Magnetic bar length can be custom made. Max's length is 2500mm when the diameter is 25mm. (6). Various end designs are available, such as Nailhead, thread hole, double screw bolt, etc. The size of Magnetic Tubes

Custom Magnetic filter rod, magnetic rod filters
ITEM No.	Diameter/Square （mm）	Length（mm）	Surface Flux
（NdFeB）	Diameter/Square （mm）	Length（mm）	Surface Flux
SMMF-C0001	10	100-500	8000-12000GAUSS
SMMF-C0002	16	100-2500	8000-12000GAUSS
SMMF-C0003	19	100-2500	8000-12000GAUSS
SMMF-C0004	22	100-2500	8000-12000GAUSS
SMMF-C0005	25	100-2500	8000-12000GAUSS
SMMF-C0006	25.4	100-2500	8000-12000GAUSS
SMMF-C0007	32	100-2500	8000-12000GAUSS
SMMF-C0008	50.8	100-2500	8000-12000GAUSS

The standard diameter we supply is D10, D19, D22, D25, D25.4, D32, D50.8 and etc. The size can be varied at your request.

The magnetic rod, the magnetic filter rod is usually made of seamed or seamless 304 stainless steel tubes or 316 stainless steel tubes. The tubes can be fine polished and fully welded to meet food grade or pharmacy application.

The standard working temperature is 80℃, but we can offer up to 350℃ to meet your special applications.

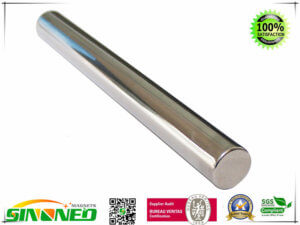

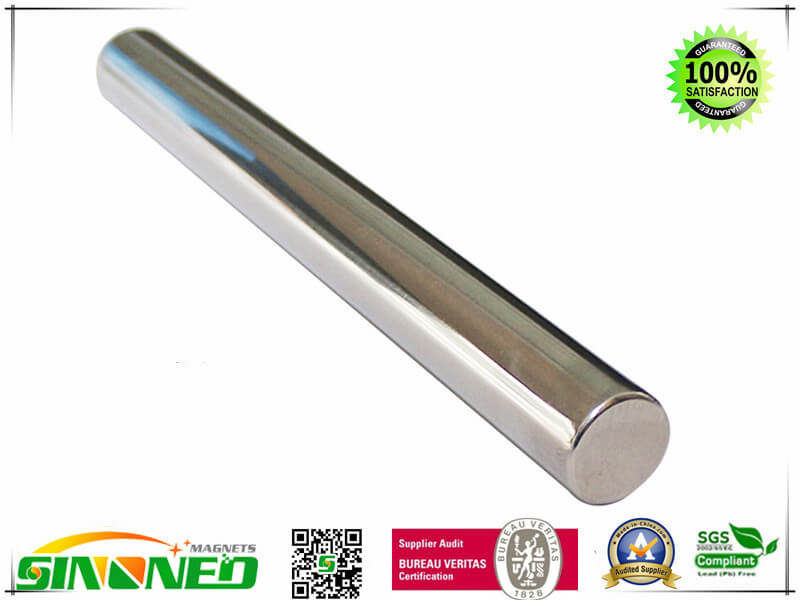

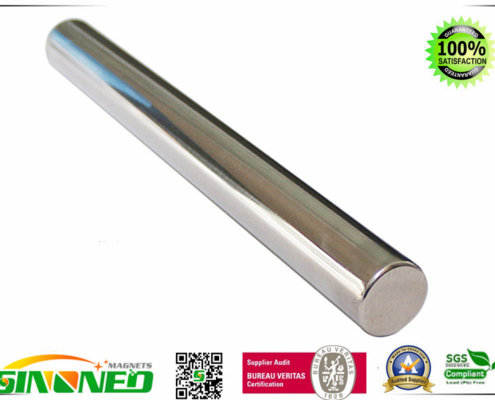

By using different grades of rare earth magnets, different magnetic forces are available to meet every customer’s requirement, the highest magnetic force of diameter 25mm magnetic bar can achieve 14,000GS(1.4T).
