MAGNETIC BOILER FILTER BAR
Magnetic Boiler Filters, Neodymium Magnetic boiler filter bar, Magnetic boiler rod Separators
| Material: | SUS304/316/316L+NdFeB Magnets/SmCo Magnets |
| Shape: | Round or Square Shape. |
| Diameter: | D10 D16 D19 D22 D25 D32 ……Up to 100mm(3.9″) |
| Length: | 90mm-2000mm, or customized as your request |
| Working Temp. | 80ºC~350ºC |
| Various End: | Sealed, drilled or tapped holes, or with bolt, or as your request. |
| Magnet Strength: | 8000-14000Gs |
| Package: | Plastic Tube+Standard Export Cartons |
| Shipping: | By sea, By air or By express delivery (DHL/UPS/FEDEX) |
| Features: | Eco-friendly, Long Life, Water-proof, Rust-proof, Anti-corrosion |
Are you looking for a custom magnetic boiler filter bars manufacturer & supplier?
Sinoneo Magnet is a professional manufacturer and exporter of Magnetic boiler filter bars, magnetic filter bars for boiler, High-Performance Magnetic bar Magnets in china. We supply high-quality Magnetic Boiler Filter Bar within the time stipulated.
We have a wide selection at great prices to help you get creative. All the magnetic boiler filter bars are quality guaranteed. If you have any questions, please feel free to contact us now.

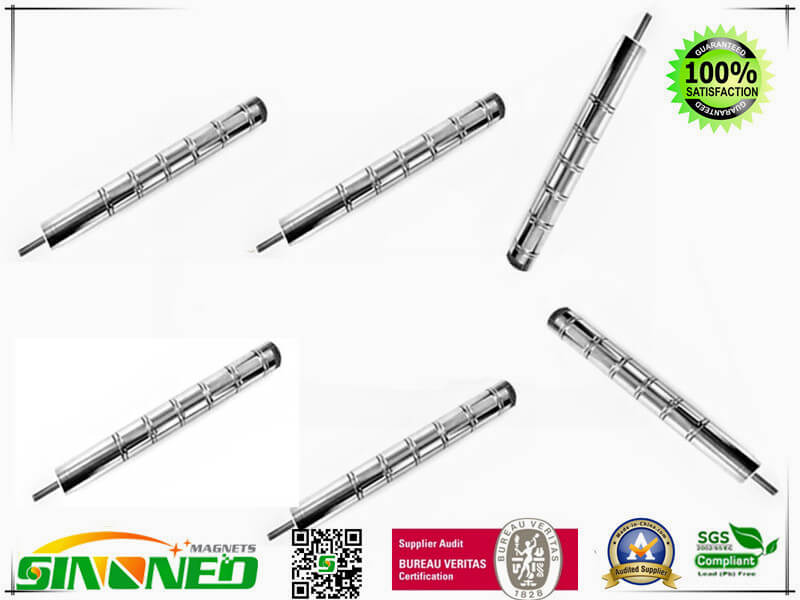

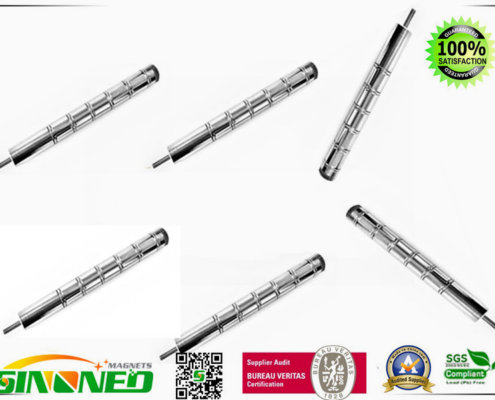

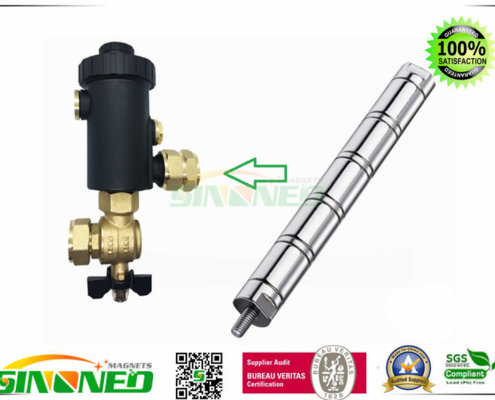

Magnetic Biler Filter Bars(Rods)(Magnet water filter) provide an effective means of removing ferrous chips and metal particles from loosely packed, free-flowing materials.

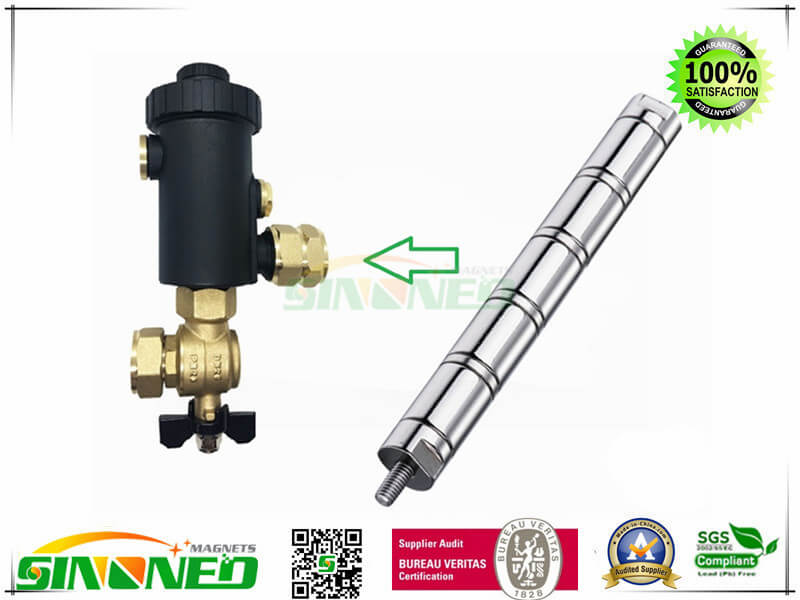

Magnetic boiler filter bars are the ideal solution to costly and unnecessary system breakdowns caused by both magnetic and non-ferrous particulate in central heating systems.
The magnetic filter core equips the strongest rare earth neodymium magnet, which provides 12000Gs magnetic field, 120°C temperature resistance.

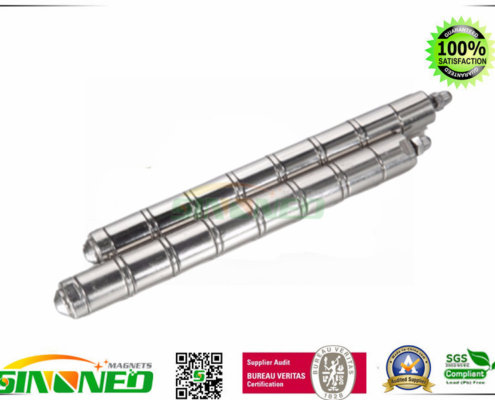

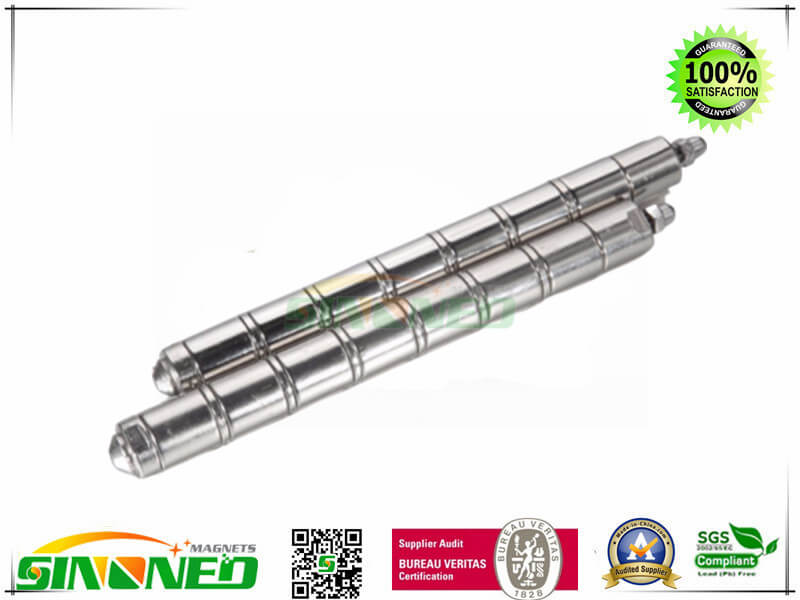

Magnetic central heating filter bars that are used in central heating magnetic filtration system with sizes dia10,15mm,22mm, or 28mm.
Working Temperature:
6 series is available for the customer to choose from
N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

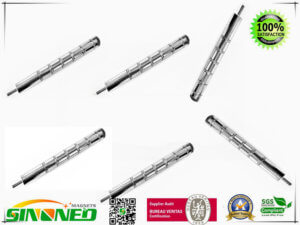

Threaded Hole of Magnetic Boiler Filter Bars:

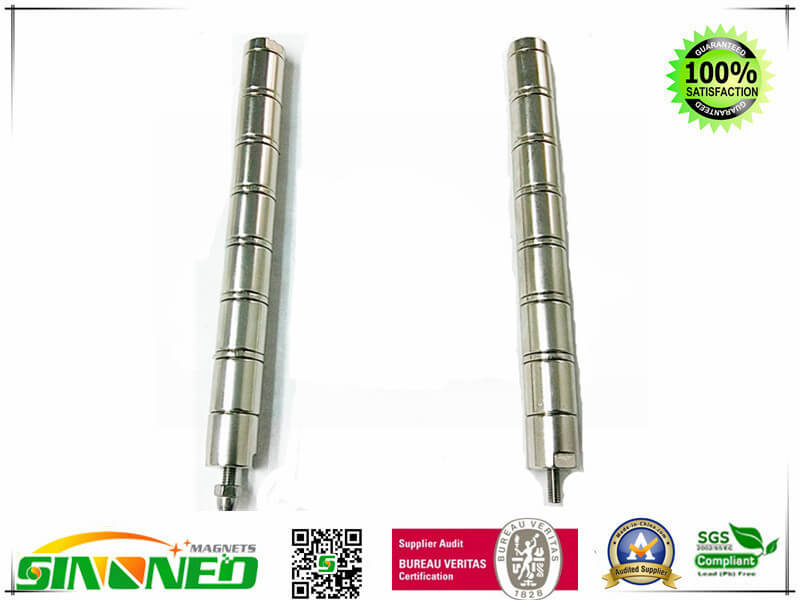

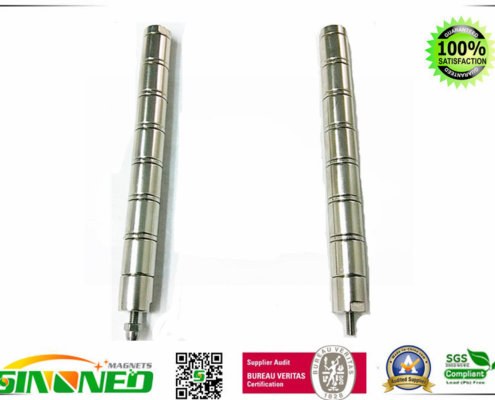

1, Tapped threaded holes at each end for easy installation.
2, Tapped one threaded hole at one end, and the other end is plain welded.
3, Both of ends are plain welded.
The Critical Parameter of Magnetic Boiler Filter Bars:
- The diameter and length of the magnetic boiler filter.
- The number of magnets for each filter.

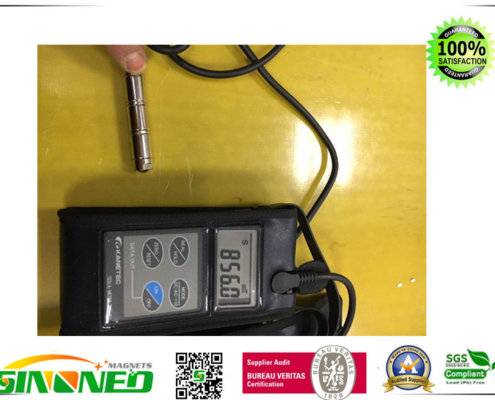

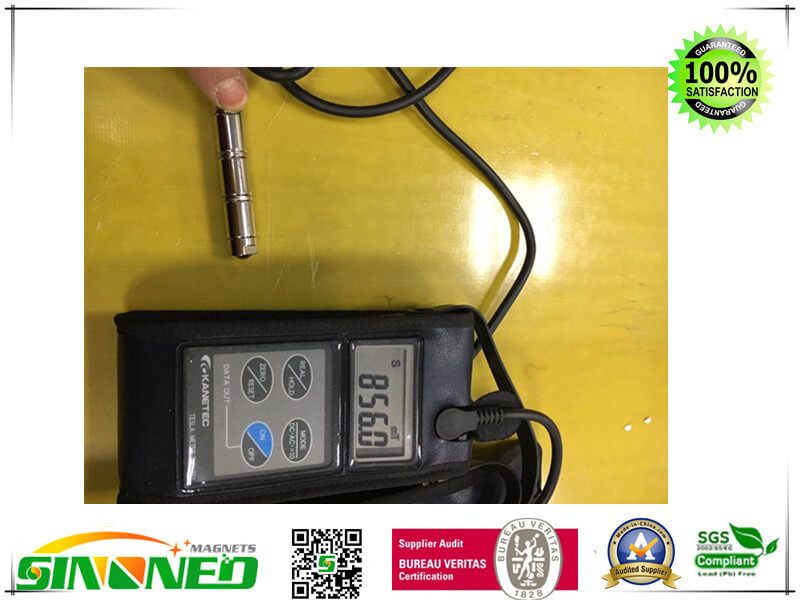

- Max. Surface Gauss value of the magnetic boiler filter.
- Connections of the magnetic boiler filter bars.
Features of Magnetic boiler filter bars:
1, Both ends of the magnetic filter bars are TIG welded.
We have done dropping test before, drop two kinds of the magnetic bar from 1 meter high, one is TIG welded for 2 end plugs, another is laser welded for 2 end plugs, there are about 5% laser welding bars were cracked but zero for TIG welding, that means bars with TIG welding are more durable.
2, Surface roughness reaches 600 Mesh.
Most of our magnetic bars are used in the food industry, it needs a high requirement of surface appearance, so we added 4 polishing process to meet the good surface roughness.
The standard working temperature is 80℃, but we can offer up to 200℃ to meet your special applications.
By using different grades of rare earth magnets, different magnetic forces are available to meet every customer’s requirement, the highest magnetic force of diameter 25mm magnetic bar can achieve 14,000GS(1.4T).
