MAGNETIC GRIDS,MAGNETIC GRILLS,MAGNETIC GRATES

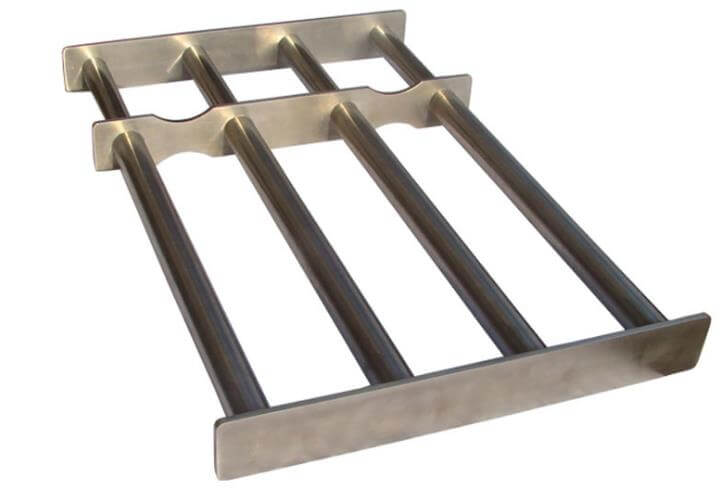

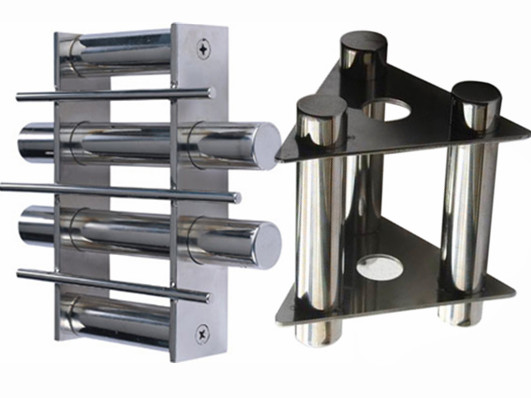

Magnetic Grid(Grate or Grill) is used for the separation of iron particles mixed with dry, granular, or free-flowing material. Magnetic Grid(Grate or Grill) are made by using stainless steel frames (Round, Square or Rectangular) with Magnetic Rods inside the frame.

This Magnetic Grid (Grate or Grill) is made up of Magnetic Elements that are fitted inside a required size frame. The Magnetic Elements are made up of High-Intensity Rare Earth NdFeB Magnets.

All the components are made up of Stainless Steel 304/316 material. The overall construction of the Magnetic Grid and Grill can also be made as per the customer specification and sizes

The Magnetic Grid(Grate or Grill) is efficiently utilized if contamination is within 1% to 1.5% by weight. For higher levels of contamination Drawer Grills or Multi Drawer Grills should be used.

High-Intensity Magnetic Grid(Grate or Grill) having Gauss value of approximately 12,000 Gauss are employed at locations where the separation of contamination particles as small as 1 micron is required. These grills have been designed to attract super fine particles from the carrier material.

Magnetic Filter Grid

Magnetic Grate

Magnetic Grills

Round Magnet Filter Grids

Magnetic Filter Grill

Strong Magnetic Grid Filters

Square Magnetic Grill Separator

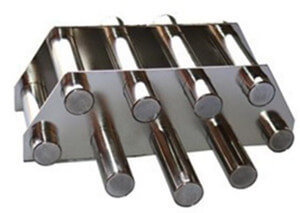

Multi-layer Magnetic Grate Separator

Magnetic Grid Separator

Easy Cleaning Magnetic Grate Filters

Maximum Operation Temperature of magnetic grid:


6 series are available for the customer to choose from
N series up to 80 degrees C
M series up to 100 degrees C
H series up to 120 degrees C
SH series up to 150 degrees C
UH series up to 180 degrees C
EH series up to 200 degrees C

Field of applications for the magnetic grid(magnetic grate)filters:



Magnetic Grids, Magnetic Grates, Magnetic Grills

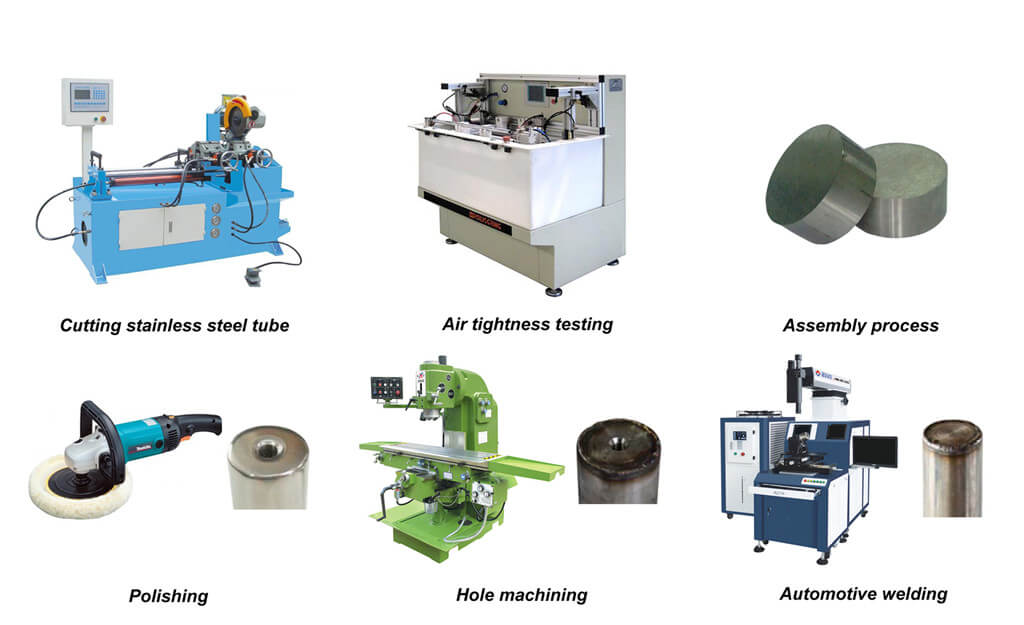

THE PRODUCTION PROCESS OF MAGNETIC GRID(GRILL, GRATE) FILTERS:



  1. Cutting Stainless steel tube.
  2. Airtightness testing.
  3. Assembly process.
  4. Polishing.
  5. Hole machining
  6. Automotive welding
magnetic grid filter make process

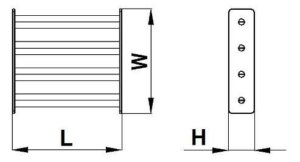

THE ALTERNATIVE STANDARD SIZE OF MAGNETIC GRID:

1.SQUARE SHAPE

Magnetic Grids(Grills,Grates) 1

Other shape and size can be made as your request.

Specification Size (mm) No. of rods
L W H
MG 10/10 100 100 40 2
MG 15/15 150 150 40 3
MG 20/20 200 200 40 4
MG 25/25 250 250 40 5
MG 30/30 300 300 40 6
MG 35/35 350 350 40 7
MG 40/40 400 400 40 8
MG 45/45 450 450 40 9
MG 50/50 500 500 40 10
MG 30/20 300 200 40 4
MG 40/20 400 200 40 4
MG 40/30 400 300 40 6
MG 50/20 500 200 40 4
MG 50/30 500 300 40 6
MG 50/40 500 400 40 8

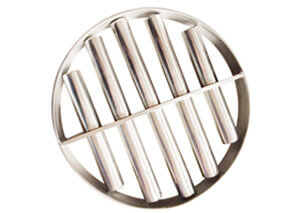

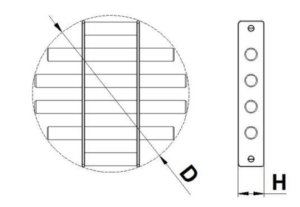

2.ROUND SHAPE

Magnetic Grids(Grills,Grates) 2

Other shape and size can be made as your request.

Specification Size(mm) No. of rods
D H
MG100 100 40 2
MG150 150 40 3
MG200 200 40 4
MG250 250 40 5
MG300 300 40 6
MG350 350 40 7
MG400 400 40 8
MG450 450 40 9
MG500 500 40 10

In order to quote you the best price quickly, please provide the following information:
1. Product size, material, etc
2. Order quantity;
3. Attached the drawings if customized
4. Any special packing or other requirements
Our advantages: High quality, best service, fast delivery.
We offer OEM service.
Quality First, Customer Forever

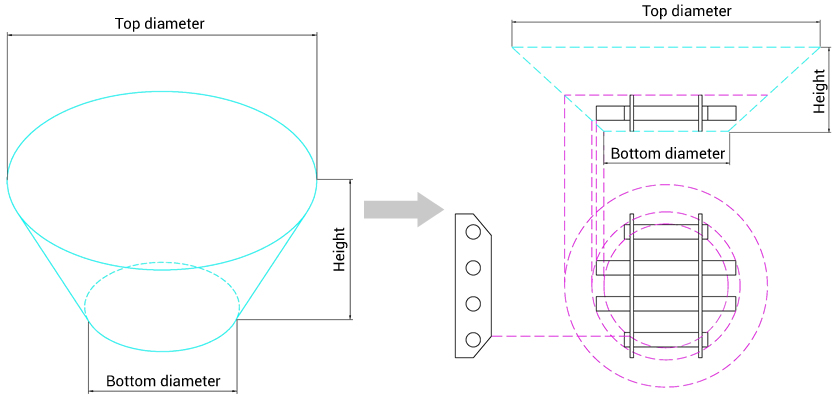

HOW TO MAKE SURE THE SIZE OF A MAGNETIC GRID IS CORRECT?

Please measure the hopper’s size if you do not have the magnetic grid and grate’s drawing. For example, 3 pieces of data are needed: top diameter, bottom diameter, and height. We will help you to finish the next steps and place a real magnetic grid into your hand.magnetic grid

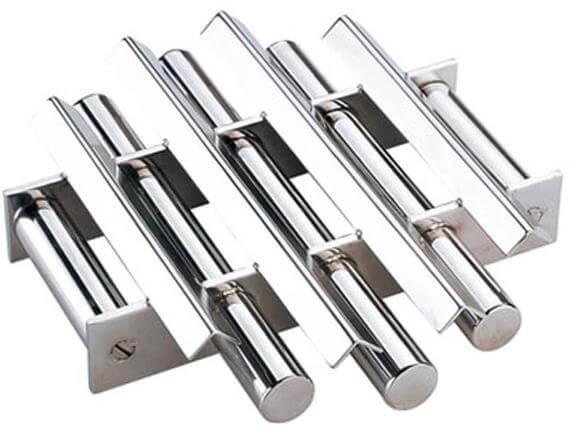

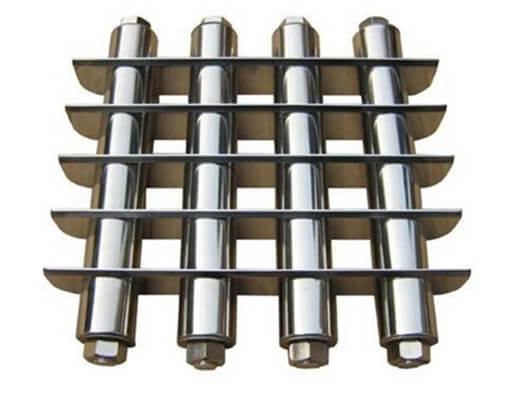

Magnetic Grate with 90°C angular baffles

Magnetic Grate with 90°C Angular Baffles

Easy Clean Magnetic Grate

Easy Clean Magnetic Grate

Round Shape Stainless Steel Magnetic Grills

Round Stainless Steel Magnetic Grills

Round Shape Stainless Steel Magnetic Grills

Rectangular Stainless Steel Magnetic Grill Separator

Magnetic Grids and Grates01

Magnetic Grids and Grates

Permanent Magnetic Grids

Permanent Magnetic Grids
